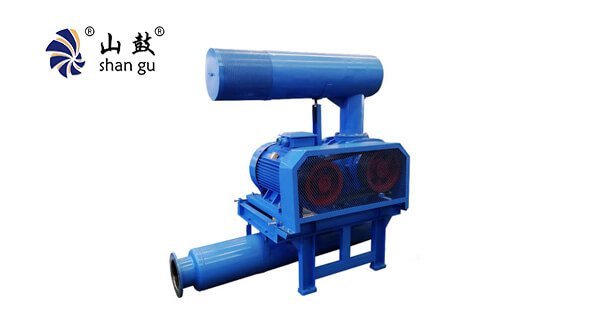

MJSR Series Three Lobes Roots Blower
Drive model:Belt or Coupling
Shangu three lobes MJSR Series Roots Blower are new series Roots type blowers. With the help of CNC machine, we made precise rotors and casings to get a perfect gap to promote air performance, lower vibrations and noises results a significant improvement compared to traditional two lobe Roots Blower.Traditional Roots Blower lubricate bearings and gears with grease and oil.Shangu blowers with double oil tank need oil only.It is very convenient to maintain and oil has a better lubricating effect than grease. So it could be a longer bearings and gears life.
1. Inlet Filter
3. Roots blower
4. Safety Valve
5. Pressure Gauge
6. Flexible Connector
7. Outlet Silencer
8. Butterfly Valve
9. Empty Silencer
10. Tee Joint
11. Main Pipe
12. Check Valve
The blower is of positive displacement type roots blower, and sends a fixed amount of air in proportion to its rotation speed.With the three-lobed rotors, the two rotors make three intake and exhaust cycles per revolution. Because the air has less pulse compared with the two-lobed type, fluctuations in load, noise and vibration are small. While the two three-lobed rotors mounted on two parallel shafts maintain only a very small clearance between themselves and the inner surfaces of the oval casing operation chamber and between each other, they are driven by timing gears, moving a fixed volume of the air enclosed by the casing and rotors from the intake side to the output side. The roots blower is free of Internal lubrication. And its simple design, easy handling, and stable performance make a wide range of applications possible.
MJSR Series Roots Blower Specifications
|Model||Diameter/mm||Pressure/kPa||Air volume m3 /min||Horse Power/kw|
1. Wastewater/Sewage Treatment Plant
2. Cement Plant Kiln Air Supply
3. Quicklime Plant Kiln Air Supply
4. Pneumatic Conveying System
5. Aquaculture Aeration
6. Power Plant
7. Special Gas Delivery(Biogas)
8. Food Vacuum Package
9. Gas Combustion Supporting
10. VPSA Oxygen Plant
Advantages of MJSR Series Roots Blower
1.Strict management of quality standards.ISO9001 and CE systems.
2.Technical customization (size, pressure,design, pump accessories).
3.CNC machinery enabling precise measurements and grinding needed for more efficient pumping.
4.Fewer vibrations transmitted through the lobe, for longer-lasting shafts, gears and bearings.
5.Three-lobe design controls any backflow pressure towards rotor.
6.Oil and dust-free outlet.
7.Lubricated with high grade oil, proven to be a much better alternative to grease.
8.Significant improvement in air performance ratios: wider air, pressure and vacuum range.
9.Much quieter: our new design can effectively reduce noise by approximately 5 dB.
10.Lower energy consumption.
11.All our products can be used for OEM.
